Cable Accessories For Termination

Product Code: CRTP1224

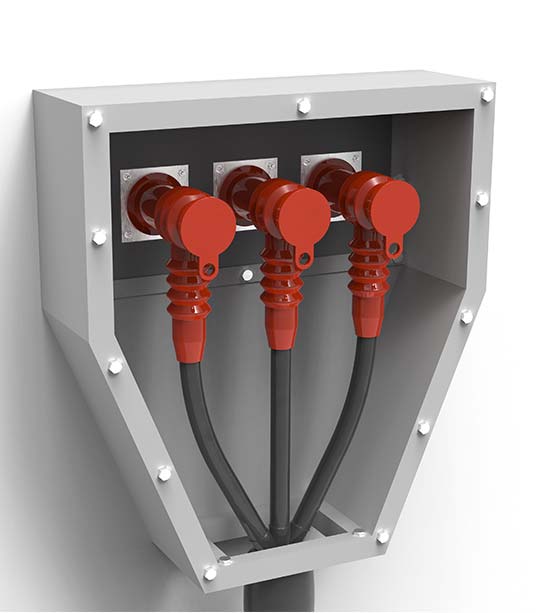

COMPAQ Elbow Terminal Protector (CRTP) is an advanced insulating solution designed for cable entry boxes with various indoor terminations. It is specifically developed for situations where phase-to-phase clearance is minimal, and there is a high risk of air flashover due to insufficient insulation levels. Acting as a robust barrier, this protector significantly minimizes flashover risks and enhances operational safety.

Manufactured using specially formulated EPDM/Silicone rubber, the CRTP offers exceptional UV resistance, track resistance, mechanical strength, and superior insulation properties. It is a moulded component compatible with epoxy bushings and undergoes stringent factory testing to ensure reliability under critical conditions.

CRTP delivers a dielectric strength of 15kV/mm and supports easy installation with its one-piece construction. This product is ideal for Ring Main Units (RMUs) with C-type bushing interfaces or bushings with diameters ranging from 46mm to 56mm.

Key Features & Benefit

• Quick and Easy Installation
• Suitable for cables ranging from 25 sq.mm to 300 sq.mm
• Facilitates Direct Voltage Testing
• Re-Usable and Cost-Effective
• Prevents Flashover in humid environments within HT cable entry boxes
• Prevents incidents caused by reptiles, birds, or animals
• Fits RMUs with C-type bushings seamlessly
• Rated for continuous operation at 90°C with an emergency overload temperature of 130°C for four hours

Applications:

• Improves insulation levels of live parts in air-insulated boxes and panels
• Transformer Bushings: Suitable for bushing diameters between 46mm to 56mm
• Ring Main Units (RMUs): With phase-to-phase clearance of 95mm and phase-to-ground clearance of 60mm
• Meter Boxes and Dry-Type Transformer Bushings
• MS Boxes and RMU Chambers
