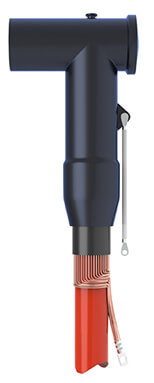

Screened Separable Connector

Product Code: CSTI

Compaq Screened Separable Connectors or we can say Touch proof terminations are designed to connect single and three core polymeric cables to medium voltage switchgear, RMU and other equipment using bushings type "C" specified for 250A, 400A, and 630A up to 24kV. Separable Connectors are made of a highly modified EPDM or Silicone rubber and protected by a touch proof outer conductive screen connected to earth. Supporting a wide application range of Touch proof terminations, the design incorporates one body and stress cone adapters to cover all cross section from 25 - 300 sq.mm.

SALIENT FEATURES

• Provides fully screened and submersible separable connection
• Suitable for connecting all types of polymeric insulated cables to equipment with bushings Type C according to EN 50180 and EN 50181
• One of the most Compact design, reduced installation time and errors
• Each connector body is factory tested for partial discharge and AC withstand to ensure 100% reliability
• Unlimited shelf life at normal storage temperatures
• No minimum phase clearance requirements
• EPDM moulded body with semi-conductive outer layer
• Easy to install with comprehensive instructions included in each kit
